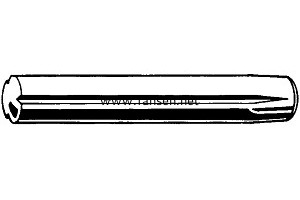

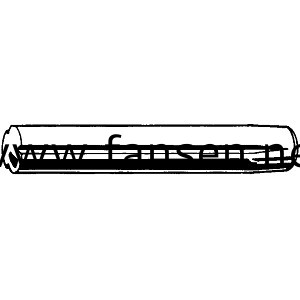

DIN1470 grooved pins-full-length parallel grooved,with pilot 帶導桿及全長平行溝槽的槽銷
|
d1
|
1.5
|
2
|
2.5
|
3
|
4
|
5
|
6
|
|
Tolerance
|
h9
|
h11
|
|
c ≈
|
0.2
|
0.25
|
0.3
|
0.4
|
0.5
|
0.6
|
0.8
|
|
Min shear
strength,doble kN
|
1.6
|
2.85
|
4.25
|
6.15
|
10.6
|
16.5
|
22.8
|
|
L
|
10-130
|
|
d1
|
8
|
10
|
12
|
14
|
16
|
20
|
25
|
|
Tolerance
|
h11
|
|
c ≈
|
1
|
1.2
|
1.6
|
1.6
|
2
|
2.5
|
3
|
|
Min shear
strength,doble kN
|
40.5
|
63.2
|
91
|
124
|
156.8
|
236.5
|
370.1
|
|
L
|
10-130
|
